Scia V24 i.c.m. Free Surface Load doesn't work properly

🚀 Need help? Ask here!
1

The FreeSurface load

model.create_free_surface_load(
        name=f"EG {transformer_unit.name}",
        load_case=load_case,
        direction=scia.SurfaceLoad.Direction.Z,
        q1=-load * KN_TO_N,  # Negative to point the force downwards in the GCW in Scia
        distribution=FreeSurfaceLoad.Distribution.UNIFORM,
        points=[(surface_vertex.x * MM_TO_M, surface_vertex.y * MM_TO_M) for surface_vertex in surface_vertices],
    )

This should generate the free surface load on all slabs in z direction. However it gets added to z=0 .

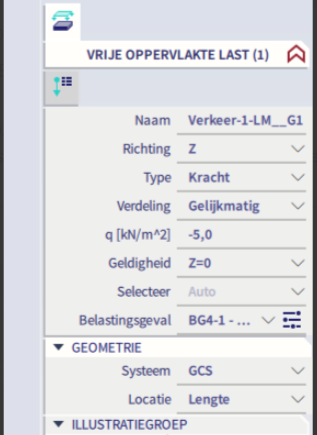

image245Ă—284 19.2 KB

image317Ă—435 46.1 KB

This shouldn’t be the case. Is this due to Scia v24 or due to updates in de SDK?
Becuase it means all results with free surface loads have become invalid.

2

@Johan_Tuls and I concluded that SCIA’s default of validity changed from “All” to “Z=0”.

Ideally this should be configurable with VIKTOR’s SCIA binding as well.
